Thickness sander
Galerie Thickness sander
2-Minute Read
![Thickness sander](/en/galleries/gal_369/10_calibreuse_lutherie_avec_top.jpg)
gallery Thickness sander
Welcome to the gallery Thickness sander.

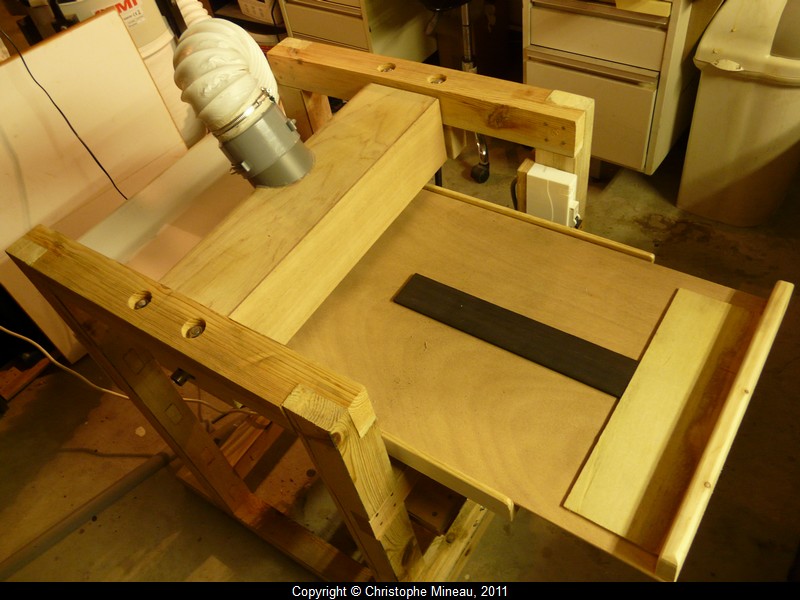

![Top view, with the dust collector vaccum connection on top of it.There is a faux table that slides and serves to push the piece.](20_calibreuse_lutherie_aspiration.jpg)
Top view, with the dust collector vaccum connection on top of it.There is a faux table that slides and serves to push the piece.

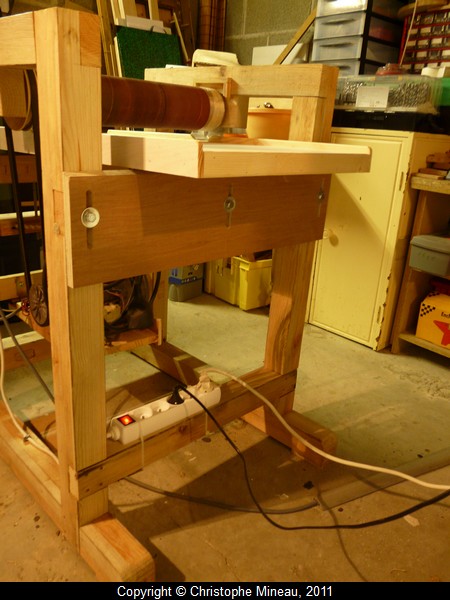

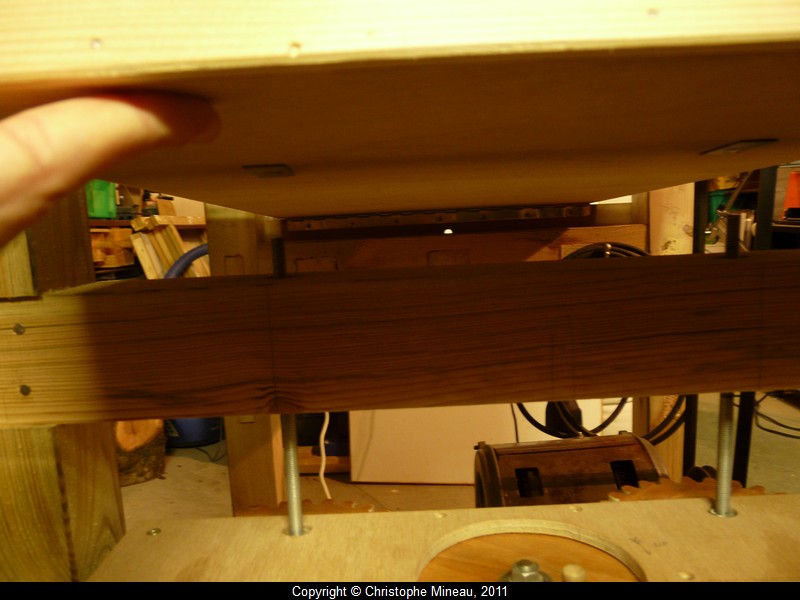

![The piano hinge is screwed to an adjustable plate, to be able to set the parallelism with the sanding roll.](40_calibreuse_lutherie_reglage_table.jpg)
The piano hinge is screwed to an adjustable plate, to be able to set the parallelism with the sanding roll.

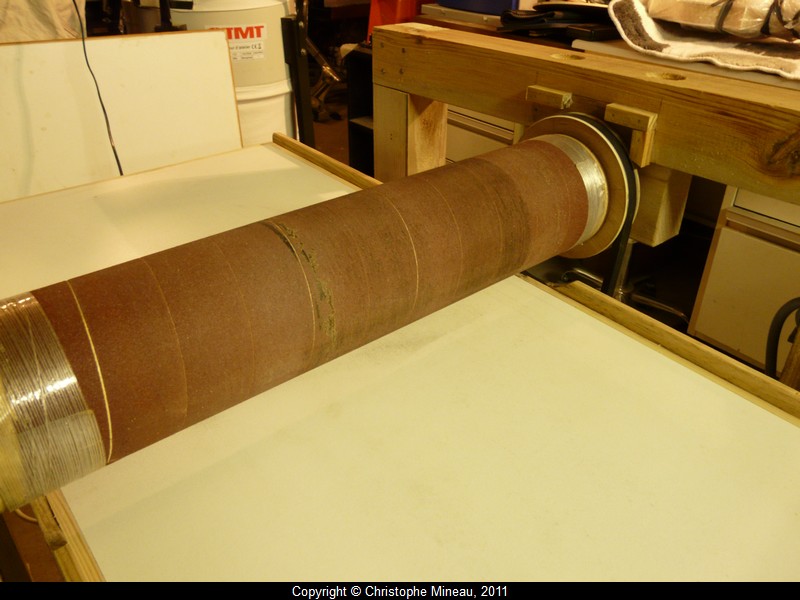

![The sanding roll is a stack of 20mm plywood disks, over a 20 mm diameter tubular shaft. The sanding paper is simply taped at both ends.](50_calibreuse_lutherie_rouleau.jpg)
The sanding roll is a stack of 20mm plywood disks, over a 20 mm diameter tubular shaft. The sanding paper is simply taped at both ends.

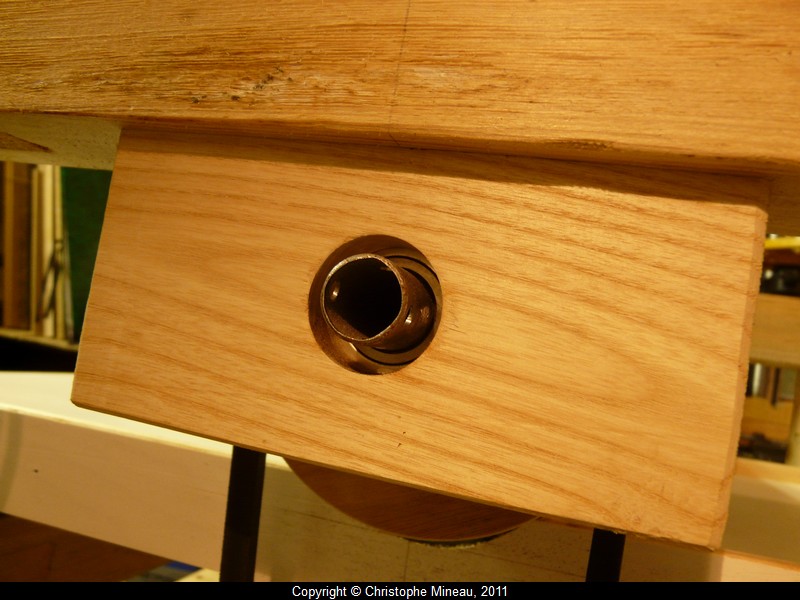

![The shaft is equiped with a couple of ball bearings, enclosed into a piece of hard wood (ash). An extension shaft can be inserted for mounting a buffing wheel for instance.](60_calibreuse_lutherie_roulement.jpg)
The shaft is equiped with a couple of ball bearings, enclosed into a piece of hard wood (ash). An extension shaft can be inserted for mounting a buffing wheel for instance.
